Drum Type Shot Blasting Machines

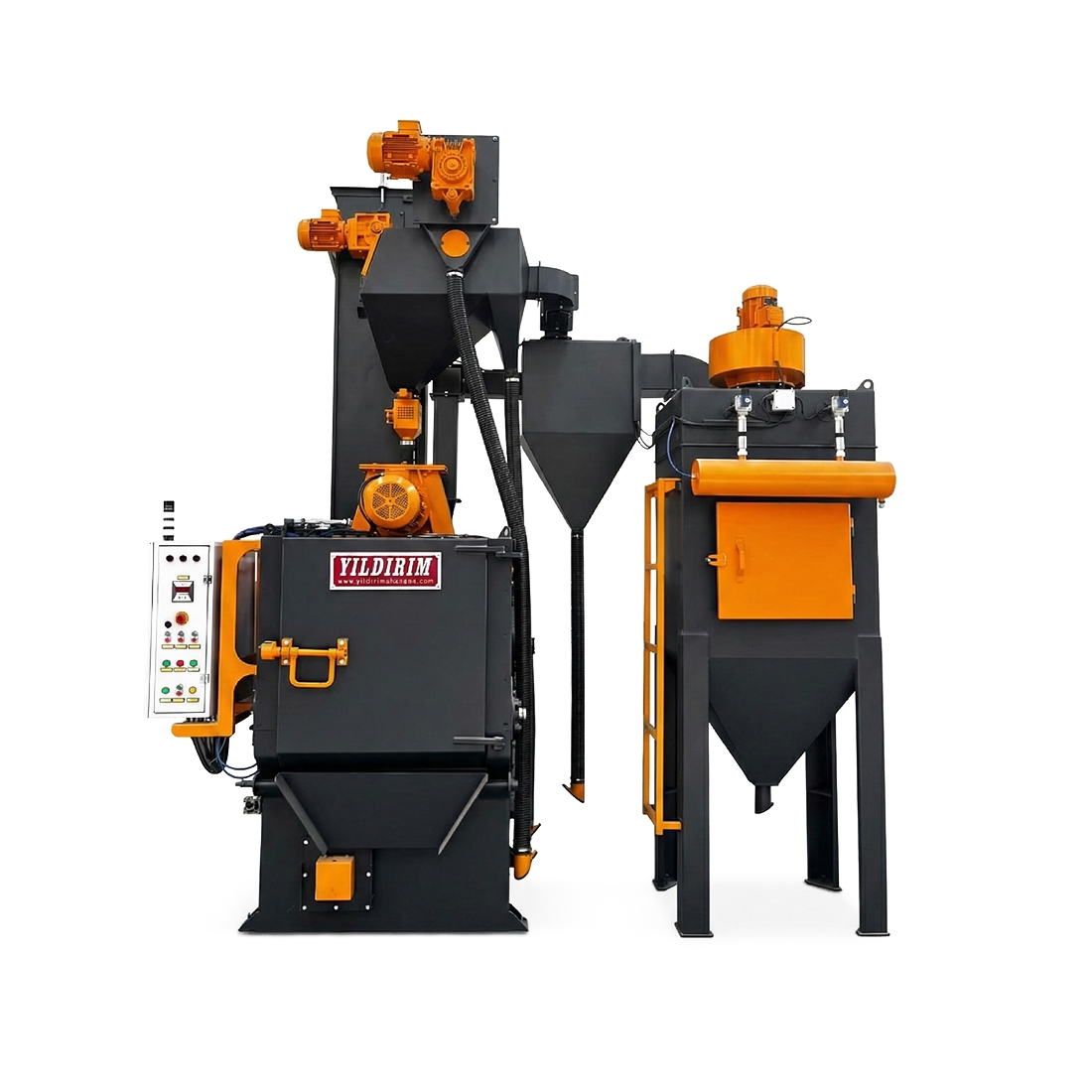

300 Kg Drum Type Shot Blasting Machine

YILDIRIM Tumble Belt Shot Blasting: Fast & Homogeneous Cleaning for Mass Production

YILDIRIM tumble belt (rubber belt) shot blasting machines are high-performance systems engineered for the rapid cleaning, deburring, and surface preparation of casting, forging, and delicate metal parts. The specialized drum mechanism ensures continuous circulation of the workpieces, delivering a flawless and standardized finish on every surface.

Why Choose YILDIRIM Tumble Belt Systems?

1. Perfect Homogeneity and Surface Excellence

The continuous rotation of the drum constantly changes the contact points of the workpieces. This ensures that even the most intricate areas of complex parts are cleaned to Sa 2.5 quality using high-efficiency YILDIRIM turbine technology.

2. Superior Wear Resistance and Shielding

The drum surface is manufactured from high-strength, wear-resistant rubber that prevents part damage while ensuring longevity. For added durability, the internal cabinet is armored with manganese steel plates to withstand intensive blasting.

3. Compact and User-Centric Engineering

Optimized for small to medium-sized production lines, these machines deliver maximum output within a minimal footprint. Easy loading and unloading features streamline the workflow, reducing operator fatigue while ensuring peak occupational safety.

Technical Specifications

Feature	Technical Details
Workpiece Size	Small and Medium-Sized Mass-Produced Components
Turbine System	High-Efficiency, Direct-Drive YILDIRIM Turbines
Drum Structure	High-Strength Rubber Belt or Steel Slat Options
Automation	PLC-Controlled Time and Speed Management
Recovery System	Fully Automatic Elevator and Air Separation Group
Filtration	Eco-friendly, High-Suction Jet-Pulse Filter Unit

Key Advantages:

Energy Efficiency: Greater throughput with lower power consumption through optimized turbine angles.
Versatile Application: Flexible structure suitable for various part sizes and weights, from automotive to defense.
Low Maintenance Costs: Rapid access to wear-prone parts and extended component lifespan.
Advanced Protection: Fully enclosed cabinet design with integrated emergency safety systems.

Application Areas

Automotive Industry: Bolts, nuts, brake components, and small-scale castings.
Metal Manufacturing: Post-machining deburring and surface polishing.
Defense & Aerospace: Critical metal components requiring high-precision preparation.
Construction & Hardware: Small hand tools, fasteners, and structural hardware.
